Kenwood MC-60A Microphone Modifications for ICOM Radios

The MC-60A Mic

The MC-60A is a nice desk microphone that uses a dynamic element, amplifier in the base, and UP/DOWN buttons to control the radio frequency.

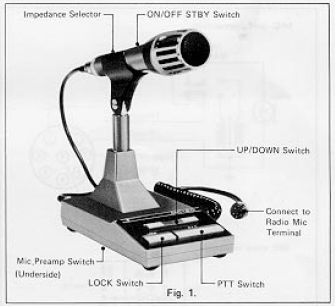

Caption: MC-60A Dynamic Element Microphone

Having used with Kenwood equipment, I wanted to convert the microphone for use with ICOM radios. ICOM's normally use a electret element that requires a small bias voltage for proper operation.

The original user manual is shown here. Note the manual does have an error on the schematic that I will describe in the next document.

User Manual (Original), Kenwood MC-60A           MC-60A UM Original (PDF)

The manual for the MC-60A unfortunately has an error in the schematic that can lead to frustrations. I have diagnosed the problem and made corrections in the attached document (PDF formatted file).

Modifications to Kenwood MC-60A                      MC-60A ICOM Mods (PDF)
